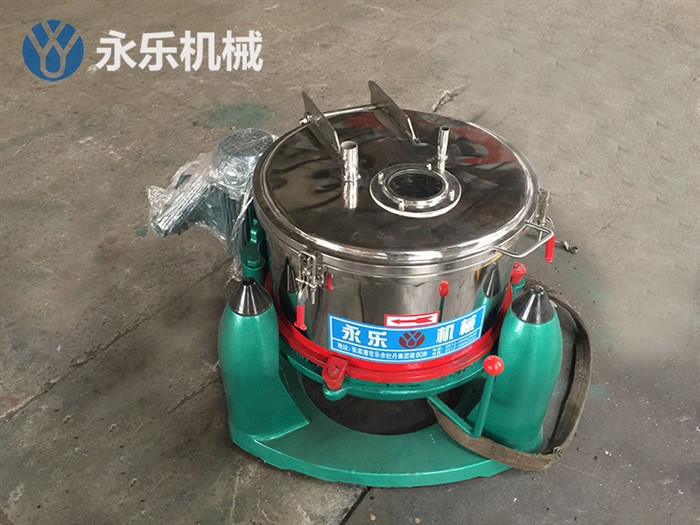

SS/SSBSeries three-legged manual upper discharge centrifuge
time:2019/3/22 14:17:00 Popularity:722



Product features and uses
The SS centrifuge is an upper discharge, intermittent operation filtration device. The material is added to the rotating drum from the upper part. Under the action of the centrifugal force field, the liquid phase passes through the filter medium and is discharged outside the machine. The solid phase material is trapped in the rotating drum, and is manually discharged from the upper part after the shutdown. The utility model has the advantages of simple structure, convenient operation and strong versatility. The SSC type is a three-legged, manual upper discharge, intermittent operation sedimentation centrifuge.

Structure and principle
It is suitable for separating suspensions containing solid phase particles ≥0.01 mm. The solid phase particles can be in the form of granular, crystalline or fibrous, and can also be used for dehydration of finished articles (such as yarn bundles, spinning products, etc.). Widely used in chemical, pharmaceutical, food, light industry and other industries. For example: gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additives, dyes, plastic raw materials, soap, grease, various resins, salt, monosodium glutamate, food additives , starch sugar, vitamins, antibiotics, herbicides, insect repellents, copper, zinc, aluminum and other mineral powder dehydration.
Product structure diagram

download Google

For different separation requirements, we have designed the corresponding type for the customer to choose, so the customer can confirm the following when ordering:
Material: The material in contact with the material can be stainless steel, titanium, carbon steel, rubber lining, plastic lining, lining PTFE.
Drive mode: ordinary asynchronous motor, explosion-proof asynchronous motor or inverter explosion-proof
Brake: Hold the brake or expand the brake.
Foundation: basic and no pouring foundation (with damper)
The main technical parameters

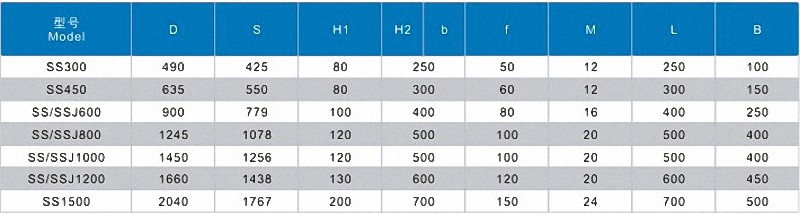

Basic installation size
